Military Boundary Stones

Boundary stones, not to be confused with Ordnance Survey datum points, are somewhat of an enigma. Historically they delineate boundaries of military sites, however, their use is not consistent – some sites have them, others do not, and as for design, there are many different styles. Their use appears to extend as far back as the end of the 18th century, through the construction of early 19th-century Napoleonic forts up until post-WW2 sites. They are present around sites that have no visible boundary fence, such as military training areas or ranges, in just as much frequency as sites that have large boundary walls into which the stones are either built or lie at the base.

This is not a military stone – this is an Ordnance Survey datum post. Note the horizontal line above the broad arrow.

Marked with the broad arrow or crow’s foot, this symbol was the mark of the Board of Ordnance and has been in use since 1699 on ‘stores of war’ belonging to the Board. In 1805 this mark was extended to all ordnance stores in use by ‘His Majesty’s Service.’ The only real variation to this was stones placed by the Admiralty, which are adorned with the ‘fouled anchor.’ The Board of Ordnance was disbanded in 1855 after which it became the War Department. However, some stones are marked with the letters BO and the broad arrow; which is believed to denote Boundary of the (Board of) Ordnance as opposed to Board of Ordnance.

A cast iron water tank dating from 1852 is marked with the broad arrow, BO for the Ordnance Board and also the Ordnance Board shield. This is one of two examples displayed at Upnor Castle on the River Medway, Kent.

What were the rules for erecting stones?

Throughout the course of my research, it has been difficult to ascertain what the rules for military boundary stones were. The only definitive guidance I have in my possession comes from part I of the 1910 Regulations for Engineer Services (Peace). This regulation states:

145. Boundary stones are required where their omission might result in encorachments on W.D. property; their use will be limited to cases where this boundary is not otherwise adequately defined.

No alteration is to be made in the position of or the marks on any boundary stone and no new stone is to be fixed without W.O. authority.

149. The C.R.E. is responsible that the boundary limes of all W.D. property are perambulated and that all lettings and lands subject to clearance rights are inspected by an officer at least once a year. (…) He will see that each boundary stone is in its proper place, that no alteration has occurred in the position of the fence or other dividing line running from stone to stone, and that no infrimgement of the clearance rights has taken place.

WD, War Department; WO, War Office; CRE, Corps (of the) Royal Engineers

There is very little specific archive material held on boundary stones, in particular relating to policy. A discussion in 1956 around the costs associated with the erection of. boundary markers highlighted the point that “there is no legal obligation to provide boundary stones but they are used for clear demarcation of WD land.”

Modern MOD boundaries are still often marked with stones, especially in the case of large training areas or ranges where the bounding of the land by a fence would be unpracticable or undesirable. GOV.uk states that “boundary markers are used to mark the boundary of a site where a natural boundary or fence does not exist.” The guidance, derived from the Military Lands Act 1892 is suitably vague and there is no specific requirement to erect stones. There is a requirement for land to be marked if it is governed by bye-laws; how would it be possible to prosecute for trespass when the public was unaware of the extent of War Department lands?

The act does not specify how the boundaries are to be marked. It says only that the Secretary of State must “cause the boundaries of the area to which the byelaws apply to be marked, and the byelaws to be published, in such manner as appears to him to be necessary to make them known to all persons in the locality…” (section 17(1)).

GOV.uk guidance on MOD boundary markers. Published 28 March 2018. Accessed 11 April 2023

Map markings

Just like the rules for erecting boundary stones were at local discretion, this discretion also seems apparent when as to how and when they are marked on maps. The section below is a short compilation of some of these variations in the hope that it will help you identify possible military boundary stones (or what isn’t a military stone) when conducting your research.

Single War Department Boundary Stones are marked as BS WD and can include a broad arrow motif.

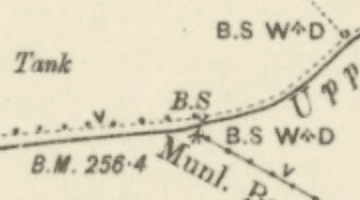

Multiple War Department Boundary Stones are marked as BSs WD and can include a broad arrow motif.
If the scale of the map allows, the boundary stones can be supplemented with their corresponding number, such as BS WD No. 22.
In this example, some additional information is provided, and would also be carved on the stone. BS No. 19 extends to the LWM, or Low Water Mark, thus including the shore in the WD lands.
Other information that is sometimes found around military or coastal sites is the FS or Flagstaff. Often hoisting a red flag to indicate a danger area. This danger area would coincide with the bounded land.
Sometimes the context of the stones is removed from the map, but the numbered Boundary Stones are still marked. They are often, but not always indicative of War Department land, the context is important.
So much information in this image; WD stones, an unspecified boundary stone and also a benchmark and surveyed height above sea level (in feet).
Posts do not indicate land, these two posts are features associated with a firing range; which coincidentally is within WD-bounded land.
Posts do not indicate land, these two posts are features associated with a firing range; which coincidentally is within WD bounded land.
Without the context, these may or may not be War Department Boundary Stones. The broad arrow at the bottom of the picture is a survey benchmark and not the WD motif.
A benchmark is indicated here on its own. The BM and numbers 10.3 relate to the broad arrow directed to the corner of the building.
This is a Mile Stone, and unrelated to War Department land. The arrow on the map relates to a nearby benchmark.

Dating the Stones

Map 1: This OS map of Fort Halstead in Kent clearly shows each WD boundary stone as well as their individual number.

Dating any stone marked with the arrow in isolation is inherently difficult as their construction and design varied depending on where, when and who was commissioning them. The implication that stones were placed at the time of construction or development is one assumption that has to be made when attempting to date stones. One case study I have used is the site at Fort Halstead:

Originally constructed as a London Mobilisation Centre in the 1890s, maps of the site (Map 1) clearly show stones (WD BS) placed in sequential order (1 – 8) around the land purchased for the site. The site was subsequently sold in 1921 and fell into private ownership. At this stage, the fort was no longer property of the War Department, so it makes sense that the stones denoting ownership were removed – which might explain why none of the original stones, as mapped, appear to be extant. However, another feasible explanation may be that as the site developed after its repurchase in the 1930s and the boundary extended past the original 3 acres old stones were removed or repurposed as the boundary was pushed. As to when the siting or relocating of boundary stones occurred, I can find no evidence to state when. this would occur.

What does exist, however, are three styles of stone (triple image below). Placed around what is now the external boundary of the site, far larger than the original fort and WW2 expansion are stones of style 2 below. These stones are rendered in concrete with very crisp numbers (although if every number was sequential, there are a lot of stones missing) and WD markings (pre-1964, most likely from the late 1940s expansion of the site). The placement of these stones is to the south and west, along the boundary that has not changed since WW2. I am led to believe there are some of this style of boundary stone inside the current site marking where the WW2 site boundary lay.

Style 1 below is the first stone on the approach to the modern site from the public road. It appears to be solid concrete and sits outside the perimeter laid by style 2 stones. It is unclear if a number is also on the stone but below the surface of the present ground – the fact that this sits much lower may also be evidence it possibly predates the others (circa the 1930s). I am confident that this stone is WW2 and predates styles 2 and 3.

Style 3 is a simple MOD post most obviously lacking the crow’s foot on the previous stones (circa 1964+) and would have been added as the site expanded in the 1960s. MOD stones are only present to the north of the site where the boundary was pushed out, while the remainder of what is the original perimeter has concrete block stones throughout. The practice of recording BS stones on OS maps has now stopped – as to when the practice ceased, is unclear.

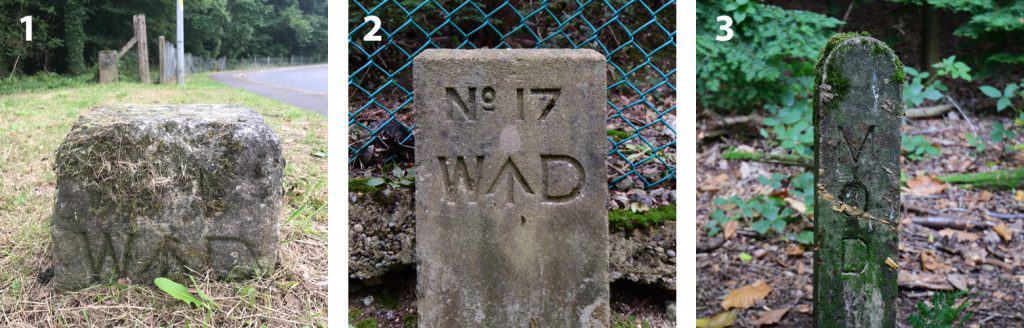

Fort Halstead stone types. Style 1 is the first stone on the approach road to the site and most likely dates from the pre-WW2 repurchase of the site. Style 2 was probably introduced during the late 1940s expansion. The MOD as it is today was formed in 1964, after which the series 3 posts must have been placed, but are much less elaborate than others found elsewhere.

In 1948 a new design of WD boundary stone was drawn up. Three feet tall (of which nine inches would be buried) and constructed of 1:2:4 concrete including an aggregate of no more than 3/8″ in diameter, they would be reinforced by 3/8″ steel rods. This design is contained in drawing number 11823 from the Director of Fortifications and Works. This was a move away from carved Bath stone blocks which would have been more time-consuming to carve, costly, and not as resistant to harsh climates.

In 1948 the following costs were estimated for the old and new stones:

  • Bath stone, dressed, squared and engraved – £1 16s 0d per stone (approx. £42.00 in 2017)
  • Precast concrete and reinforced, with moulded marking – 9/ per stone (approx. £10.74 in 2017)

In 1964, with the formation of the Ministry of Defence, in the form we now know, a new stone was designed and fabricated. Again, a concrete pillar, three feet tall, the four-sided column was to have chamfered edges and a 7-inch inset square into which the relevant MOD and ‘number’ were to be displayed.

These stones cost £3 10s 0d in 1964, which is around £61.66 in 2017 money.


Boundary stones could generally be placed into broad categories:

  1. BO – 1597 until 1855. It is unclear when the use of boundary stones began.
  2. Fouled anchor – Admiralty existed from 1801 to 1964.
  3. AM – Air Ministry only in existence from 1918 to 1964.
  4. WD – War Department was formed following the disbandment of the BO in 1855.
  5. WD (dated) – Example dated 1868. No dated examples seem to be before the 1860s or post-1890s.
  6. MOD – As of 1st April 1964 any new boundary stones erected on the boundary of lands used for military purposes will be enfaced “M.O.D. ⬆ B.S. No. XX” from the Defence (Transfer of Functions) Act 1964, Wording of Lands Notices, Bylaws.

The following markings can be found on stones alongside the broad arrow:

  • BO – Boundary of the (Board of) Ordnance
  • BS – Boundary Stone
  • WD – War Department
  • A – Admiralty
  • AM – Air Ministry
  • MOD – Ministry of Defence
  • No. X – Number (sequential)

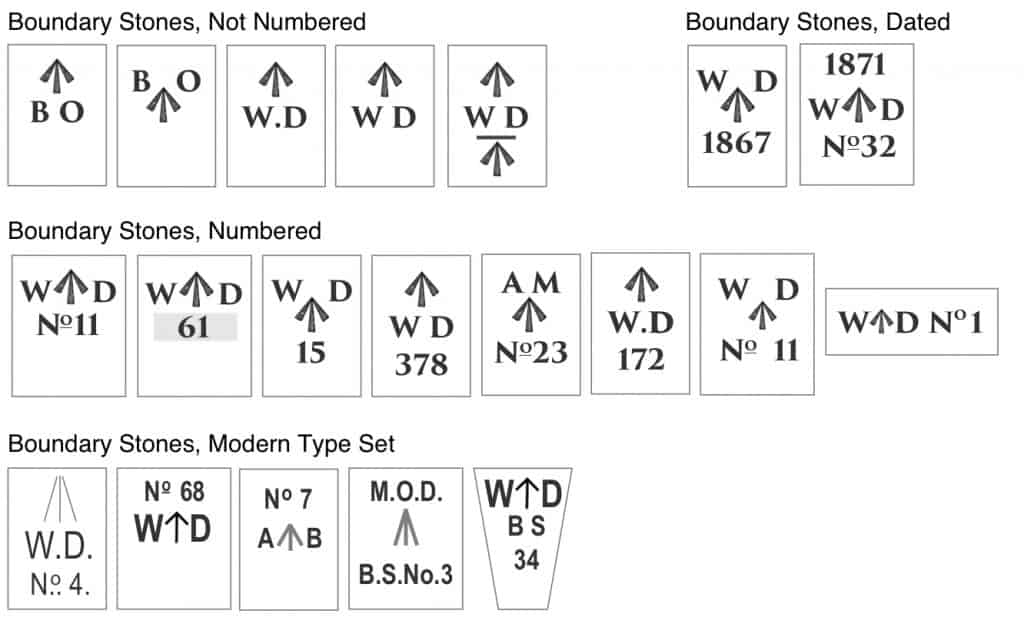

A reference guide to some of the variations of stones that have been found spanning the past 200 years.

Below are some examples of stones that I have recorded for which a date can be quite reliably placed:

Design evolution

Some of the earliest specifications for boundary stones I can find come from the Schedule of prices for works and repairs to buildings, &tc. The first edition I have in my collection is from 1939, with subsequent publications dating from 1948 and 1961. This allows us to track the cost of stones for the middle of the twentieth century.

Description193919481961
Boundary stones (3 ft long, 12 ins. in section) described above£2 2s 3d£2 18s 0d£7 5s 6d
Price adjusted for 20231Calculated using the National Archives currency converter rounded up or down to the nearest year – https://www.nationalarchives.gov.uk/currency-converter/£83.12£90.50£152.49

There is also useful guidance on the specification of the stone to be used. Two terms are in use throughout; hard freestone, and soft freestone. Hard freestone has equivalence to Portland (Whitbed) stone, and soft freestone has equivalence to Bath stone. In relation to the dressing of the dressed plain face of the stones, hard freestone was to be rubbed, and soft freestone finely combed. This should help us identify the stone used.

The stones to be prepared from Portland or other hard freestone of approved description and quality. The exact letting to be cut on each boundary or tablet stone will be stated on the order.

Boundary stones average 3 ft. long (12 ins. by 12 ins. in section). Upper 18 ins. of stone dressed (plain face) and lower 18 ins. left rough, top edges chamfered. Stones to be inscribed “W⬆D” in 3-in. sunk block letters, and “No. 00” in 2-in. sunk block letters, as ordered. Carefully fix in the exact position marked out, including excavaion, return, fill, ram, and remove surplus soil.

Schedule of prices for works and repairs to buildings, &tc. of the War Department, 1939

There is no specification for precast concrete boundary stones, despite the archives directing their use in 1948.

An original Bath stone boundary stone has been extracted from the ground on Flat Holm Island in the Bristol Channel. From drawings, the stones were 3 feet tall, with 1ft 6 inches of finished squared stone above ground. They are 1ft square and normally carved on one side.

This drawing was issued by the Department for Works (DFW) to all districts in the UK in September 1948 with a decree that all boundary stones would now be made from reinforced concrete.

This design is contained in DFW Drawing Number 11823.

The associated notes detail that the sloped inscription should face towards the WD land, and not away from it.

This design was proposed in 1954 to transition from bath stone to reinforced concrete. The stones would be precast and have moulded markings on their top face. They were reinforced with 3 mild-steel rods, presumably at the apexes of the triangular column.

I am unclear if this proposal supersedes or otherwise the 1948 designs above.

A boundary stone anomaly is this chunk of concrete on a scrap pile in Cyprus. On land which was at one stage War Department property, any WD markings are now hidden; but it’s highly likely this is a WD BS. Precast in fine concrete, there is a single reinforcing rod protruding from the base (or top) of the stone, much like the specification of stone below having a single 25mm steel bar running vertically through the stone.

This is an example of a current pattern MOD boundary post. The triangular profile stone is 1 meter tall, with 450mm sitting above ground level when erected. Two 500mm steel rods, 25mm in diameter are passed through the holes in the base of the post to help secure it in the ground. A single vertical 25mm diameter reinforcing bar runs through the centre of the stones to within 50mm of the top surface.

The broad arrow motif is inscribed to a depth of 7mm in fine white concrete. The broad arrow is described as an “equilateral triangle with 20 mm radius rounded corners. Top angled at 45º”.

The design can be downloaded from GOV.uk

Military stone design compendium

I have put together a gazetteer of boundary stone designs and patterns to aid in their identification and characterisation. This is not a complete list of variations, only those I have recorded myself or been given to reproduce. Like much historic research, this is a dynamic list and as new information comes to light I will ensure the list is updated.

Ordnance Board (BO)

ImageDetails
A carved stone column, square in profile, with a flat top. The text is carved in a Serif old-style typeface, with the chevron of the broad arrow and vertical line segment being equal in thickness; the line not extending beyond the lowest point of the chevron. The broad arrow is centrally aligned on the stone and is flanked by the letters B, to the left, and O, to the right. The letters are carved in the top corners of the front face of the stone, with the tip of the broad arrow starting at the halfway height of the letters.

TEXT – “BO” for Board of Ordnance
MOTIF – A narrow square carved broad arrow with a short stem set centrally but half below the letters BO
MATERIAL – Grey sandstone, possibly sourced locally from quarries in Donegal, with a bush-hammered finish
LOCATION – Ned’s Point Fort, County Donegal. This is probably not to be the original location of this stone and it has been moved in recent years
DATE ESTIMATE – Likely to date from the original fort construction between 1812-13
CREDIT – Frontline Ulster
A carved stone column, square in profile, with a full hip top rising to a single point. The text is carved in a Serif old-style typeface, with the chevron of the broad arrow and vertical line segment being equal in thickness; the line not extending beyond the lowest point of the chevron. The broad arrow is centrally aligned and above the letters BO.

TEXT – “BO” for Board of Ordnance
MOTIF – A narrow square carved broad arrow with a short stem set centrally but wholly above the letters BO
MATERIAL – Grey sandstone, possibly sourced locally from quarries in Donegal, with a horizontal adze finish
LOCATION – The stone is ex-situ and has been incorporated into the wall of the Point Bar. Magilligan Point, County Londonderry
DATE ESTIMATE – Likely to date from the original Martello Tower construction between 1812-17
CREDIT – Frontline Ulster
TEXT – “BO”
MOTIF – A narrow square carved broad arrow with a short stem set centrally but wholly below the letters BO
MATERIAL – Blue millstone grit
LOCATION – Bullpoint Gunpowder Depot, Barne Road, Plymouth
DATE ESTIMATE
CREDIT – © bobfitzy62, Flickr reproduced under the fair dealing clause for non-commercial research
A square cast iron boundary plate, inset at ground level into the brick boundary wall of St. Mary’s Church. There is evidence of filled holes at each corner of the plate, suggesting four mounting bolts or studs. The broad arrow style is of three equal flared lines, or triangles, forming the chevron and vertical line segment. The text style appears in the Serif transitional style, with greater contrast between thick and thin segments in each letter.

TEXT – “BO” for Board of Ordnance
MOTIF – An embossed broad arrow with equal length flared chevron and stem, set centrally but wholly above the letters BO
MATERIAL – Cast iron
LOCATION – St. Mary’s Church, Chatham
DATE ESTIMATE – Pre-1855. The boundary plate may originate from the construction of the Royal Marines barracks in 1779, or the nearby gun wharf. However, both establishments were under admiralty control.
CREDIT – Frontline Ulster
A rectangular limestone block inset into a larger block stone wall at an old barrack entrance. The broad arrow style is of three equal flared lines, or triangles, forming the chevron and vertical line segment. The text style appears in the Serif transitional style, with greater contrast between thick and thin segments in each letter.

TEXT – “OB No 1” for Ordnance Board, stone number 1. OB is an unconventional notation, BO being more widely used. Further indication this may be a misinformed reproduction.
MOTIF – A square carved broad arrow with flared chevron and stem, set centrally but below the letters BO
MATERIAL – Bath stone
LOCATION – Gough Infantry Barracks, Armagh City
DATE ESTIMATE – The first barracks were constructed at the site in 1773, and have been in continuous use since then. An assessment of the typography and condition suggests this is a modern reproduction.
CREDIT – Frontline Ulster

War Department (WD) (Inset)

ImageDetails
TEXT – “No 20 W.D.By.” indicating this was stone number 20 of the War Department Boundary (By.)
MOTIF – A v-cut broad arrow with a narrow chevron and stem, set centrally and at the bottom of the stone
MATERIAL – Limestone
LOCATION – Dover, Kent
DATE ESTIMATE
CREDIT – © Gary Binden, User BINO, Flickr reproduced with permission
TEXT -“10 WD 1867”
MOTIF – A v-cut broad arrow with a narrow chevron and elongated, flared v-cut stem, set centrally between the letters W and D
MATERIAL
– Granite
LOCATION
– Dartmouth Castle
DATE ESTIMATE
– 1867
CREDIT
– © Steve Poole, Flickr reproduced with permission
TEXT – “WD 5”
MOTIF – A square-cut broad arrow with chevron and stem, set centrally and uppermost on the stone
MATERIAL – Limestone
LOCATION – Dock Road, Chatham on the boundary of the Naval Dockyard
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD 5”
MOTIF – A v-cut broad arrow with a chevron and elongated an elongated stem, set centrally between the letters W and D
MATERIAL – Carved stone
LOCATION – Enniskillen Castle, County Fermanagh
DATE ESTIMATE – Around 1853 when the barracks became home to the 27th Regiment of Foot
CREDIT – Frontline Ulster
TEXT – “To HWM WD” indicating that the War Department boundary extends to the High Water Mark. Often seen at coastal locations where it would be impractical to place stones in the water.
MOTIF – A v-cut flared broad arrow with equal length chevron and stem, set centrally between the letters W and D
MATERIAL – Limestone
LOCATION – Magazine Lane, New Brighton
DATE ESTIMATE
CREDIT – © John S Turner and licensed for reuse under CC BY-SA 2.0
TEXT – “WD 5”
MOTIF – A v-cut narrow chevron and elongated stem, set centrally between the letters W and D
MATERIAL – Limestone
LOCATION – Gough Infantry Barracks, Armagh City
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD No 106”
MOTIF – A v-cut narrow flared chevron and elongated stem, set centrally between the letters W and D
MATERIAL – Limestone
LOCATION – Set into the wall at St. Mary’s Church, Chatham beside an Admiralty fouled anchor marker
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD No 16”
MOTIF – A wide embossed broad arrow with flared chevron and stem, set centrally and between the letters W and D
MATERIAL – Cast iron
LOCATION – Set into the road at the Dover, St James Street – Castle Hill Road Junction
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD No 17”
MOTIF – A narrow embossed broad arrow with flared chevron and elongated stem, set centrally and between the letters W and D
MATERIAL – Cast iron
LOCATION – Set into the road at the Dover, St James Street – Castle Hill Road Junction
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD”
MOTIF – A square cut broad arrow with flared chevron and stem, set centrally and above the letters WD
MATERIAL – Carved in a cast iron railing sill
LOCATION – Shooters Hill, London, Grid Reference TQ 4281 7667
DATE ESTIMATE
CREDIT – © Gary Binden, User BINO, Flickr reproduced with permission

War Department (WD) (Rectangular column, end carved)

ImageDetails
TEXT – “WD 83”
MATERIAL – Limestone
LOCATION – At the corner of Kitchener Barracks on Brompton Hill, Kent
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD No 2”
MATERIAL – Bath Stone
LOCATION – Brean Down Fort, Somerset
DATE ESTIMATE – The fort was constructed between 1864-1871
CREDIT – Frontline Ulster
TEXT – “No 42 WD”
MATERIAL – Concrete
LOCATION – Fort Halstead, Kent
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD BS No 3”
MATERIAL – Limestone
LOCATION – Tynemouth Castle
DATE ESTIMATE – Around 1859 when new works were begun to rearm the fort
CREDIT – Frontline Ulster
TEXT – “WD BS No 18” (BS – Boundary Stone)
MATERIAL – Granite
LOCATION – Barbican, Plymouth, Devon
DATE ESTIMATE
CREDIT – © Chris in Plymouth, Flickr CC BY-NC-SA 2.0

War Department (WD) (Rectangular column, face carved)

ImageDetails
TEXT – “WD No 8”
MATERIAL – Limestone
LOCATION – Ned’s Point Fort, County Donegal, likely ex-situ
DATE ESTIMATE – 1867 when the fort was extended
CREDIT – Frontline Ulster
TEXT – “WD”
MATERIAL – Limestone
LOCATION – Gough Infantry Barracks, Armagh City
DATE ESTIMATE

CREDIT
– Frontline Ulster
TEXT – “WD 155”
MATERIAL – Limestone
LOCATION – Fort Pitt military cemetery, Chatham, Kent
DATE ESTIMATE
CREDIT – Frontline Ulster
This tiny sketch comes from an 1889 map of the British camp on Mount Troodos, Cyprus, and could be taken as indicative of the style of stones at the time.

TEXT – “WD No 1”
LOCATION – Troodos Mountain, Cyprus
DATE ESTIMATE – 1889
TEXT – “WD No 1”
MATERIAL – Limestone
LOCATION – Ex-situ set into the wall of the Point Bar, Magilligan Point, County Londonderry
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD BS No 1091 4ft WEST”
MATERIAL – Limestone
LOCATION – Highfield Close, Gainsborough
DATE ESTIMATE
CREDIT – © Ian Waites, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “WD 33”
MATERIAL – Limestone
LOCATION – Slough Fort, Kent
DATE ESTIMATE – 1867 dating to the construction of the fort
CREDITSlough Fort Preservation Trust, Instagram 5 April 2023
TEXT – “WD No 1”
MATERIAL – Pink granite
LOCATION – Cowley Barracks, Oxford
DATE ESTIMATE – 1878
CREDIT – Frontline Ulster
TEXT – “WD No 16”
MATERIAL – Granite
LOCATION – Landguard Fort, Felixstowe
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD No 17” on rear of stone
MATERIAL – Granite
LOCATION – Landguard Fort, Felixstowe
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD”
MATERIAL – Granite
LOCATION – Dartmoor
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD 19”
MATERIAL – Granite
LOCATION – Dartmoor
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “2 WD”
MATERIAL – Limestone
LOCATION – Flat Holm Island
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “No 39 WD”
MATERIAL – Limestone
LOCATION – Fort Halstead, Kent
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD A 1389”
MATERIAL – Precast concrete
LOCATION – Standinhill Wood, Surrey SU 938536
DATE ESTIMATE
CREDIT – © Paul E Smith and licensed for reuse under CC BY-SA 2.0
TEXT – “WD 57”
MATERIAL – Precast concrete made from cement and a high percentage of beach pebble aggregate
LOCATION – Lydd Ranges, Kent
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD 5”
MATERIAL – Limestone
LOCATION – Nothe Fort, Weymouth
DATE ESTIMATE – 1860-1872 during construction of the fort
CREDIT – © Neil Owen and licensed for reuse under CC BY-SA 2.0

War Department (WD) (Non-rectangular column)

ImageDetails
TEXT – “WD”
MATERIAL – Cast iron
LOCATION – Ha-Ha Road, Greenwich
DATE ESTIMATE
CREDIT – © Stephen Craven and licensed for reuse under CC BY-SA 2.0
TEXT – “WD”
MATERIAL – Limestone
LOCATION – Hackness Martello Tower, Isle of Flotta, Orkney
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “No 9”
MATERIAL – Limestone
LOCATION – Enniskillen, County Fermanagh
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD No 11”
MATERIAL – Cast iron
LOCATION – Tower of London
DATE ESTIMATE
CREDIT – © Steve Poole, Flickr reproduced with permission
TEXT – “WD 1”
MATERIAL – Limestone
LOCATION – Cow Gate Steps, Western Heights, Dover
DATE ESTIMATE
CREDIT – © Fat Wreck, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “WD BS 4” (BS – Boundary Stone)
MATERIAL – Precast concrete made from cement and a beach pebble aggregate
LOCATION – Water catchment area beside Stanger Head Port War Signal Station, Flotta Isle, Orkney
DATE ESTIMATE – Between 1948-1964 based on stone design
CREDIT – Frontline Ulster

Admiralty (ADM)

ImageDetails
TEXT – “6”
MOTIF – An upright carved fowled anchor set centrally and lowermost on one face of the stone column
MATERIAL – Limestone
LOCATION – James Street, Devonport
DATE ESTIMATE
CREDIT – © Tim Jenkinson, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “12”
MOTIF – An upright carved fowled anchor set centrally and lowermost on one face of the stone column
MATERIAL – Limestone
LOCATION – Saltash Passage, Plymouth
DATE ESTIMATE
CREDIT – © Tim Jenkinson, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT
MOTIF – An upright carved fowled anchor set centrally on two perpendicular faces on this cornerstone
MATERIAL – Limestone
LOCATION – Unknown
DATE ESTIMATE
CREDIT – © Paul Wells, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “No 14”
MOTIF – An upright carved fowled anchor set centrally between the text “No” and “14”
MATERIAL – Limestone
LOCATION – Upnor Castle, Kent
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “No 38”
MOTIF – An upright carved fowled anchor set centrally and lowermost on one face of the stone column
MATERIAL – Limestone
LOCATION
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “No ?? 1914”
MOTIF – An upright carved fowled anchor set centrally on one face of the stone column below the text “No” and above the date “1914”
MATERIAL – Precast concrete made from cement and abeach pebble of aggregate
LOCATION – Undercliff Road, Kingsdown
DATE ESTIMATE – 1914
CREDIT – © Fat Wreck, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “No ?? 1914”
MOTIF – An upright carved fowled anchor set centrally on one face of the stone column below the text “No” and above the date “1914”
MATERIAL – Precast concrete made from cement and a beach pebble of aggregate
LOCATION – Undercliff Road, Kingsdown
DATE ESTIMATE – 1914
CREDIT – © Fat Wreck, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “No 9 ADMY BDY” (ADMY – Admiralty, BDY – Boundary)
MOTIF – An upright carved fowled anchor set centrally and uppermost on one face of the stone
MATERIAL – Precast concrete
LOCATION – Devonport
DATE ESTIMATE
CREDIT – © Chris in Plymouth, Flickr CC BY-NC-SA 2.0
TEXT – “No 4 A Bdy” (A – Admiralty, BDY – Boundary)
MOTIF – An upright carved fowled anchor set centrally on one face of the stone column below the text “No 4” and above the text “A Bdy”
MATERIAL – Precast concrete
LOCATION – Holton Heath Cordite Factory
DATE ESTIMATE
CREDIT – © Howard, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “No 17”
MOTIF – An upright moulded fowled anchor set centrally and uppermost on one face of the stone column
MATERIAL – Precast concrete
LOCATION – Herstmonceux Castle, East Sussex
DATE ESTIMATE
CREDIT – © Budby, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “No 14 AB” (AB – Admiralty Board) A fouled anchor is marked on the side face of this stone
MOTIF – A v-moulded broad arrow on the lower of two lines of text, set centrally and between the letters A and B
MATERIAL – Precast concrete made from cement and a high percentage of beach pebble aggregate
LOCATION – Weymouth, Grid Reference SY 681 781
DATE ESTIMATE
CREDIT – © Tim Jenkinson, Flickr reproduced under the fair dealing clause for non-commercial research

Air Ministry (AM)

ImageDetails
TEXT – “AM BDY” (AM – Air Ministry, BDY – Boundary)
MOTIF – Text only
MATERIAL – Precast concrete
LOCATION – Unknown
DATE ESTIMATE
CREDIT – © Fat Wreck, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “AM No 12”
MOTIF – A flared broad arrow with an elongated stem set centrally below the letters AM and above the text No 12
MATERIAL – Precast concrete
LOCATION – Unknown
DATE ESTIMATE
CREDIT – © John Cooper, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “AM 4”
MOTIF – Text only
MATERIAL – Precast concrete made from cement and a high percentage of beach pebble aggregate
LOCATION – Yately Common, Surrey
DATE ESTIMATE
CREDIT – © Steve Poole, Flickr reproduced with permission
TEXT – “AM 22”
MOTIF – Not recognisable as a broad arrow, but a broad stemmed vertical arrow set centrally, below the letters “AM” and above the number “22”
MATERIAL – Precast concrete made from cement and a high percentage of beach pebble aggregate
LOCATION – Old Sarum Airfield, Wiltshire
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “AM”
MOTIF – A square moulded broad arrow set centrally and lowermost
MATERIAL – Precast concrete made from cement and a high percentage of beach pebble aggregate
LOCATION – RAF Bentley Priory
DATE ESTIMATE – Post-1948 when concrete stones would replace carved bath stones. I do not believe bath stone AM stones exist.
CREDIT – © Gary Binden, User BINO, Flickr reproduced with permission
TEXT – “AM 7D” Air Ministry stone number 7D
MOTIF – A square moulded broad arrow with elongated stem set centrally below the letters “AM” and above the designation “7D”
MATERIAL – Precast concrete
LOCATION – The western end of RAF Martlesham Heath
DATE ESTIMATE
CREDIT – © Peter Garwood, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “AM”
MOTIF – Text only
MATERIAL – Precast concrete
LOCATION – RAF Barnham, Sussex
DATE ESTIMATE – 1955 when the development of the airfield was completed for the nuclear age
CREDIT – © Gary Binden, User BINO, Flickr reproduced with permission

Ministry of Defence

ImageDetails
TEXT – “MOD No. 816”
MATERIAL – Precast concrete made from cement and a high percentage of beach pebble aggregate
LOCATION – The Maultway, Camberley
DATE ESTIMATE
CREDITSteve Poole, Flickr reproduced with permission
TEXT – “M.O.D BOUNDARY”
MATERIAL – Precast concrete
LOCATION – The corner of Burton Stone Lane and Grosvenor Road, York
DATE ESTIMATE
CREDIT – © www.yorkstories.co.uk reproduced under the fair dealing clause for non-commercial research
TEXT – “MOD”
MATERIAL – Precast concrete
LOCATION – Fort Halstead, Kent
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “MOD”
MATERIAL – Precast concrete
LOCATION – Unknown, England
DATE ESTIMATE
CREDIT – © Cognito Exploration, Instagram, reproduced under the fair dealing clause for non-commercial research
TEXT – “MOD BSN 1” (BSNo – Boundary Stone Number)
MATERIAL – Precast concrete
LOCATION – Beacon Hill, Upnor
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “MOD BOUNDARY”
MATERIAL – Precast concrete
LOCATION – RAF Boxted
DATE ESTIMATE
CREDITGary Binden, User BINO, Flickr reproduced with permission
TEXT – No text
MATERIAL – Precast fine mix white concrete to standard fence post specification
LOCATION
DATE ESTIMATE
CREDIT – Frontline Ulster

Combination boundary and datum stones

There is a special category of stones which serve the purpose of denoting a boundary or the extent of local bye-laws, but have also been used as a survey datum point. This is indicated by the horizontal top on the broad arrow and is more commonly found independently such as those left by the Ordnance Survey, but also by military engineers.

ImageDetails
TEXT – “WD”
MOTIF – Broad arrow benchmark
MATERIAL – Granite
LOCATION – Redoubt Fort, Eastbourne
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “AB 1858”
MOTIF – Broad arrow benchmark
MATERIAL – Limestone
LOCATION – St. Fagans National Museum of History, Cardiff (ex-situ)
DATE ESTIMATE – 1858
CREDIT – Frontline Ulster
TEXT – “WD No 1 TO L.W.M. IN LINE WITH ???” (LWM – Low Water Mark)
MOTIF – Broad arrow benchmark
MATERIAL – Precast concrete post with a carved and inset slab
LOCATION – Magilligan Camp, County Londonderry (ex-situ)
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “4”
MOTIF – Broad arrow benchmark
MATERIAL – Precast concrete (not reinforced)
LOCATION – Ascension Island
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “WD No 1”
MOTIF – Broad arrow benchmark
MATERIAL – Precast concrete
LOCATION – Inset into the wall of the Point Bar, Magilligan Point, County Londonderry
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “P”
MOTIF – Broad arrow benchmark
MATERIAL – Natural limestone
LOCATION – Carved into an iron holdfast used to haul guns up the hill at Signal Station Road, Gibraltar
DATE ESTIMATE
CREDIT – Frontline Ulster

Unspecified military stones

ImageDetails
TEXT – “10”
MATERIAL – Limestone
LOCATION – St Saviour’s, Jersey
DATE ESTIMATE
CREDIT – © Tim Jenkinson, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “14”
MATERIAL – Limestone
LOCATION – St Saviour’s, Jersey
DATE ESTIMATE
CREDIT – © Tim Jenkinson, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – Nil
MATERIAL – Concrete likely cast in situ
LOCATION – Georgetown, Ascension Island
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – Nil
MATERIAL – Grey sandstone
LOCATION – Fort Dunree, County Donegal
DATE ESTIMATE – An early-looking stone on the boundary line of the Ordnance Group to the rear of the 1815 fort. It may date from the 1847 expansion of the fort.
CREDIT – Frontline Ulster
TEXT – “26”
MATERIAL – Limestone
LOCATION – Flat Holm Island
DATE ESTIMATE – Fortifications on the island were completed in 1869, this stone likely dates from this initial occupation
CREDIT – Frontline Ulster
TEXT – “1”
MOTIF – Broad arrow
MATERIAL -Cement
LOCATION – Pressed into a cement tablet on a wall inside Princess Royal’s Battery, Gibraltar
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “PC 45” possibly standing for Public Common
MATERIAL – Precast concrete made from cement and a high percentage of beach pebble aggregate
LOCATION – Hollesley Common, Suffolk
DATE ESTIMATE – Second World War or post-war
CREDIT – Frontline Ulster
TEXT – “MSD 1914” (MSD – Military Supply Depot)
MATERIAL – Concrete
LOCATION – Devonport Lines, Plymouth, Grid Reference SX 4595 5417
DATE ESTIMATE
CREDIT – © Boundary Mark, Flickr reproduced under the fair dealing clause for non-commercial research
TEXT – “WD TELE” (TELE – Telegraph) indicating the line of a War Department telegraph cable
MATERIAL – Precast concrete
LOCATION – St. Margret’s Hope, Orkney
DATE ESTIMATE – 1939-1945
CREDIT – Frontline Ulster
TEXT – “WD SIGNALS”
MOTIF – None
MATERIAL – Precast concrete
LOCATION – Near the Queen’s Balcony, Gibraltar
DATE ESTIMATE -1939 – 1945
CREDIT – Frontline Ulster
TEXT – “CG 2” (CG – Camping Ground)
MATERIAL – Poor quality concrete with a high percentage aggregate, reinforced with flat steel bar internally
LOCATION – Troodos Mountain, Cyprus
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “JOINT BOX” with the moulded letters infilled with lead
MATERIAL – Concrete made from cement and beach gravel
LOCATION – RAF Bawdsey Chain Home Station, Suffolk
DATE ESTIMATE – Circa. 1940
CREDIT – Frontline Ulster
TEXT – “MV CABLE” (MV – Medium Voltage)
MATERIAL – Concrete made from cement and fine beach gravel. Internal reinforcing bars are corroding and showing through the top surface
LOCATION – RAF Bawdsey Chain Home Station, Suffolk
DATE ESTIMATE – Circa. 1940
CREDIT – Frontline Ulster
TEXT – “No 2 SMM”
MATERIAL – Limestone
LOCATION – Felixstowe, Suffolk
DATE ESTIMATE
CREDIT – Frontline Ulster
TEXT – “ELCABLES” (ELCABLES – Electric Cables). The second line of text is unreadable
MATERIAL – Limestone
LOCATION – Felixstowe, Suffolk
DATE ESTIMATE
CREDIT – Frontline Ulster

Non-military stones

ImageDetails
This cast iron pillar is a GPO (General Post Office) cable marker used to mark joins along main trunk cable routes. Interestingly many of the distance plates that would have sat above the broad arrow and below the “ft in” were removed during the Second World War on security grounds; it was thought the removal of the distance to the joint would inhibit sabotage by enemy agents.

In this instance, the broad arrow indicates Crown property and is neither related to the War Department nor Ordnance Survey.

TEXT – “ER ft in”
MOTIF – Broad arrow
MATERIAL – Cast iron
LOCATION – Landsdowne Road, Cheltenham
DATE ESTIMATE – Edward VII 1901 – 19102More information on these posts can be found on this wonderful site – https://gpo-markers.derektp.co.uk/markers
CREDIT – Frontline Ulster
Officially designated the Post, Marker, No. 2, this GPO marker was introduced in 1914 and was laid until the change to the PO in 1972. The official document states “Buried plant situated along country roads should be marked by using a Post, Marking No. 2.  The post should be positioned, where possible, with its long face parallel to the line of the track, so that the numerals face the track along a line at right angles to it.”3More information on these posts can be found here – https://gpo-markers.derektp.co.uk/markers

In this instance, the broad arrow indicates Crown property and is neither related to the War Department nor Ordnance Survey.

TEXT – “GPO”
MOTIF – Broad arrow
MATERIAL – Reinforced concrete
LOCATION – Bath Road, Cheltenham
DATE ESTIMATE – Installed between 1914 – 1972
CREDIT – Frontline Ulster
  • 1
    Calculated using the National Archives currency converter rounded up or down to the nearest year – https://www.nationalarchives.gov.uk/currency-converter/
  • 2
    More information on these posts can be found on this wonderful site – https://gpo-markers.derektp.co.uk/markers
  • 3
    More information on these posts can be found here – https://gpo-markers.derektp.co.uk/markers
